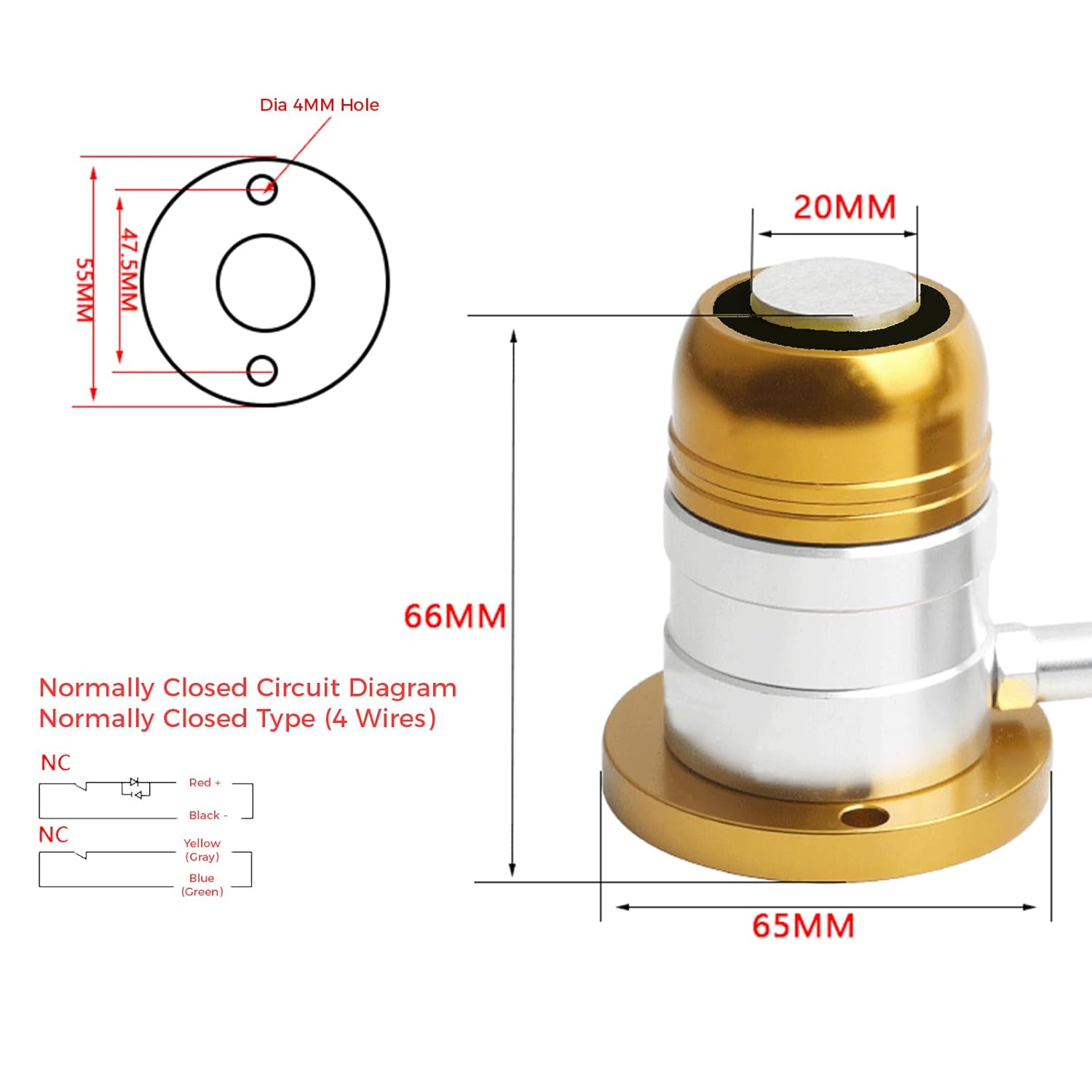

CNC Automatic Tool Sensor Gauge with DC 24V Cable, 4 Wires Normally Closed Tool Setter, Z Axis Probe Tool Touch Sensor for CNC Milling Machine, CNC Router Engraving​ Machine

"Specification:Item Type: Touch Tool SetterVoltage: DC 24VCurrent: 20MA (Maximum) (Recommended value: 10mA)Output Mode A: NC (Normally Closed)Pre-travel: Nearly zeroTotal Stroke: Approx 4mm / 0.16inRepeat Positioning Accuracy: 0.01mm(Operation speed: 50-200mm/min)Overstroke Retraction: <1mmPre-stroke: Almost zeroLife: 3 million timesContact Force: 2.5N(Installation state: Vertical)Air Blowing Device: Optional Combination(as part of a combo)Tool Setting Surface Diameter: Approx 20mm / 0.8inTool Setting Surface Roughness: Ra0.8Tool Setting Surface Flatness: ≤0.03mmTool Setting Surface Material: Superhard AlloyCable: Dia 4mm 2m 4 coresCable Tensile strength: 20NCable Minimum Bending Radius: R7Protective Tube: 304 Stainless Steel Hose (1m), Minimum bending radius: R25Protection Class: IEC IP67Tool Setting Protection: YesLED Light: NonePackage List:1 x Tool SetterNote:Do not exceed the tool setter's stroke during contact, as this will damage the tool setter (stroke is 5.0MM).When touching the tool setter's contact surface by hand, do not release it immediately, as this may damage the internal structure of the tool setter and affect its service life and contact rate.After tool setting between the tool and the tool setter, the tool must be lifted vertically away from the contact surface; do not move it horizontally, otherwise the tool setter will be damaged.Tool Setter Installation Instructions: The tool must be perpendicular to the tool setter when in contact, and should touch the contact surface vertically downward. Install it in an area on the workbench with minimal iron chips to avoid affecting the tool setter's accuracy.Rated power supply range: DC10-380V, current below 20mA. For SHIYO, the operating temperature range is -25℃ to 70℃; controlling it within this range is better.The diameter of the tool for setting should be within 20MM. Control the tool setting speed at 50-200MM/MIN, and the tool center should align with the center of the tool setting surface.When using the air blowing function, the outer diameter of the air tube should be 6MM and the inner diameter 4-5MM. Keep the area clean during use; clean the iron chips and cutting oil attached to the contact surface."

• CNC Compatibility: This Z-Axis Touch Tool Setter features a normally closed design that aligns with the safety logic of most CNC controllers. It comes with a dedicated cable for plug-and-play functionality, enabling seamless compatibility with the majority of mainstream CNC equipment
• Measurement Specifications: For this Crumye CNC Automatic Tool Sensor Gauge, the repeat positioning accuracy is 0.01mm/ 1/2540 inch, contact life is 3 million cycles, total stroke is 4mm（3/19 inch）, rated contact voltage is DC24V 20mA (MAX), and contact force is 2.5N.For more details, please refer to the product description or images
• Rust-Resistant Materials: The tool setting surface of this Tool Setter for CNC Milling Machine is made of superhard alloy, and the protective tube is crafted from 304 stainless steel hose, which effectively resists oxidative corrosion caused by coolant and iron chips in the workshop
• Strong Magnetic Mount: This CNC Router Tool Setting Touch Probe has a heavy-duty bottom magnet, attaching directly to CNC machine ferrous surfaces for flexible repositioning across work scenarios without damaging the machine
• Sealing Design: This CNC Z-axis probe tool utilizes a black rubber air seal to create a dust- and water-resistant structure. It blocks debris from entering the air passage, ensuring the air-blow cleaning function operates reliably
