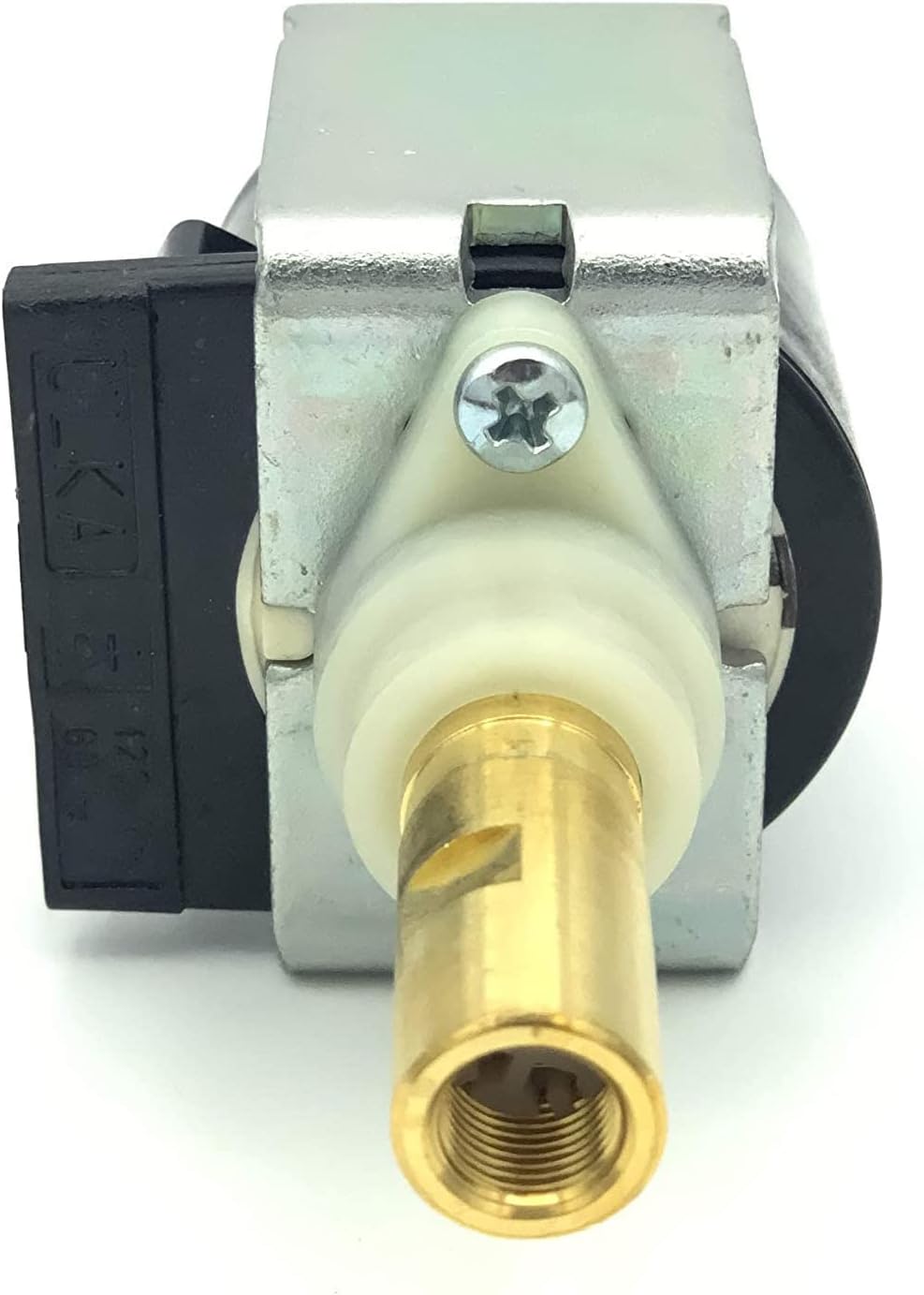

MacMaxe ULKA Model E Type EAX5 – Solenoid Vibratory Water Pump Brass Shaft with Two Seal OR 2025 – 1/1,5 min ON/OFF, 120V 60Hz 52W – Wide Compatibility With Espresso Machines

Model E, Type EAX5 120V, 60Hz 52W.fittings ø 1/8"- ø 6 mm;pressure max 15 bar;water temperature max 25°C;integrated diode (1N 4007P);lead connector 6.3x0.8 mm;All pumps are designed and tested using water as fluid.Pump should have water inside after removing red cap off of water inlet.A brown stain may be visible around the water inlet, it is normal.We do not recommend to stock the pumps for long time,especially in high temperature storage house and in particularfor pumps without water inside.Sometimes pumps will develop an airpocket in shipping or from storage.TO WORK PROPERLY, PUMP MUST HAVE WATER INSIDE . EMPTY PUMP WILL MAKE A LOUD BUZZING NOISE.To remove the airpocket, use a syringe filled with water and pushthe water through the pump. Make sure the other end is clear and drained,or connected within machine and air can escape the other side.The thread connection G 1/8“ of the plastic pump outlet is not subjectto the norm UNI ISO 228/2. The seal is not guaranteed by the thread.In fact the hydraulic seal has to be assuredby the seal OR 2025 Ø 1.76 x 6.07 mm. Replacement Pump for Espresso Machine with Part# ASCASO GORENJEISOMAC Part: 451002 : MAVERICK, MILLENNIUM, MONDIALE, PRO3.1, PRO6.1, TEA, TEA-PID, VENUS, ZAFFIRO PAVONI Part 451002 : BOTTICELLI-EVOLUZIONE, BOTTICELLI-PREMIUM, CASABAR, CELLINI-CLASSIC, CELLINI-EVOLUZIONE SANREMO

• ULKA Model E, Type EAX5 120V, 60Hz 52W Solenoid Vibratory Water Pump with with Two Seal OR 2025
• Self priming at 0 bar, Integrated diode (1N 4007P), Thermal cutout pocket, Pressure max 15 bar.
• Compact solution for high pressure and low flow applications.
• Full detailed electrical and hydraulic inspection
• Water temperature max 25°C
