USB Logic Analyzer Device kit USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug with 6 Colors Test Hook Clip Set Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM
Product details
| Management number | 211161451 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211161451 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

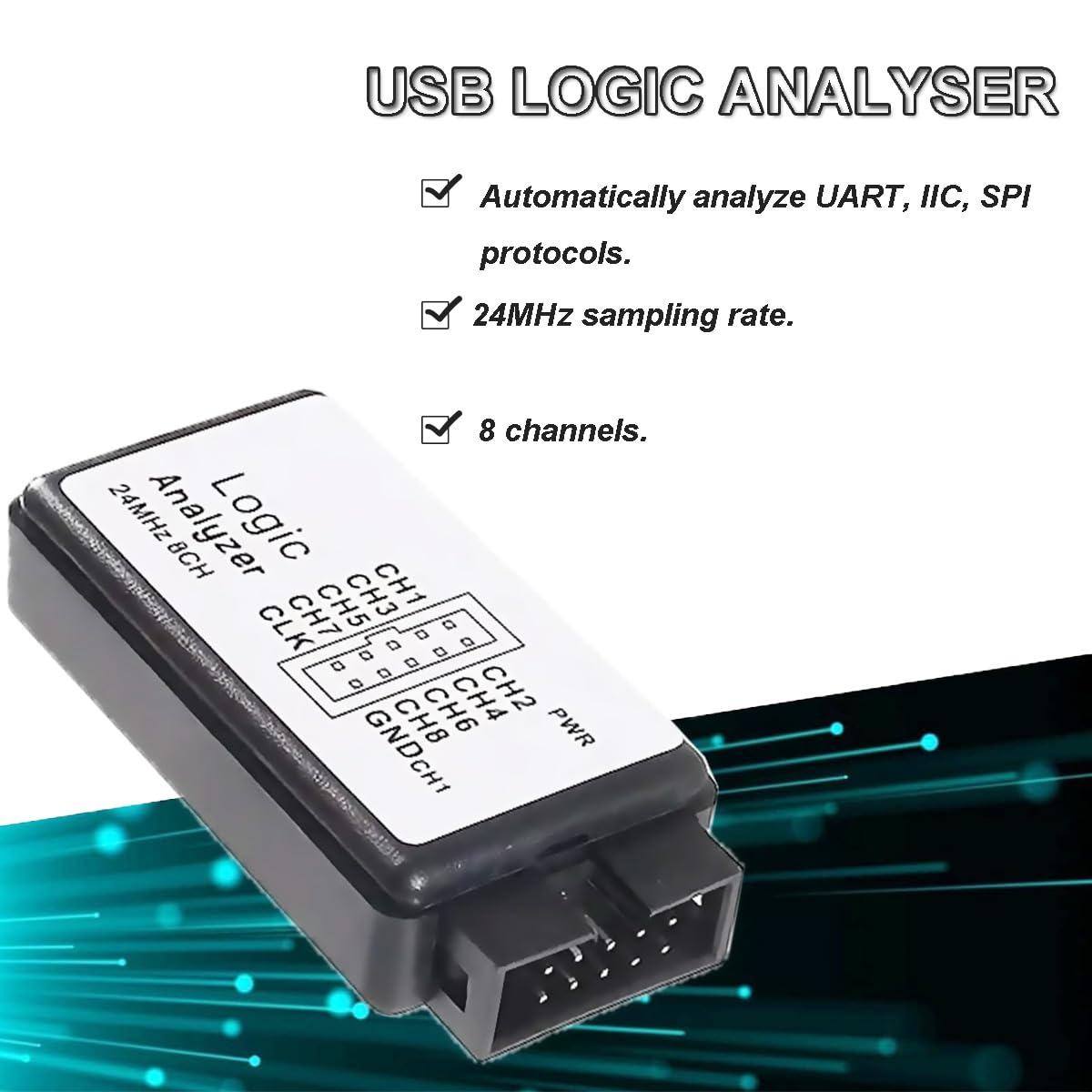

This item is an inexpensive logic analyzer designed to be compatible with Saleae Logic Analyzer software.Specifications:Works with 5V, 3.3V, 2.5V, 2.0V systems.May work with 1.8V but not recommended.Input Impedance: 1Mohm || 10pF (typical, approximate).Crystal: +/-20ppm, 24MHz.Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).Voltage range:Input voltage range: -0.5V to 5.25VInput Low Voltage: -0.5V to 0.8VInput High Voltage: 2.0V to 5.25VInput Impedance: 1Mohm || 10pF (typical, approximate)Package Includes:1 x Logic Analyser1 x Mini to USB cable22 x Female to female cable12 x Test Hook Clip
- WHAT IT DOES: The logic analyzer is mainly used for timing determination.It collects and displays digital signals and compares signals at different voltages to determine the timing of the signal under test.Using a logic analyzer, you can easily set signal trigger conditions, capture signal interference glitches, and complete communication protocol analysis.
- FEATURES: This item is an inexpensive logic analyzer designed to be compatible with Saleae Logic Analyzer software.
- AUTOMATIC ANALYSIS: UART, SPI, IIC and other communication debugging, let you get twice the result with half the effort.24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.
- CHANNEL VALUE: A total of 8 digital channels, the voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, above 1.5V is considered high.
- SAMPLING RATE: 24 MHz , can be 24MHz.16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
- APPLICABLE TO VARIOUS OCCASIONS: The logic sampling rate of each of the 8 channels is 24M/s, generally about 10M, which is sufficient for various occasions.
- PRODUCTS INCLUDE: 1 x Logic Analyser;1 x Mini to USB cable;22 x Female to female cable;12 x Test Hook Clip.
| Model | JA-DA-026 |
|---|---|
| Voltage | 5 Volts |
| Brand Name | DAOKAI |
| Unit Count | 1.0 Count |
| Part Number | JA-DA-026 |
| Manufacturer | DAOKAI |
| Mounting Type | Surface Mount |
| Current Rating | 1 Amps |
| Number of Poles | 1 |
| Included Components | 1 x Logic Analyzer Kit |
| Circuit Breaker Type | Standard |
